New High Efficiency, Space Saving Slim-Line DIN Rail Power Supplies available from Stadium Power

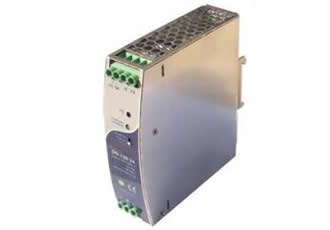

The highly-efficient 120W DIN-120 and 240W DIN-240 units provide a single output of either 24 or 48VDC and are aimed at industrial  applications, including  process control and building automation, where the space used by the power supply on the DIN rail needs to be minimised.  Their narrow width offers system integrators useful space savings with the DIN-120 and DIN-240 being just 32mm and 45mm wide respectively.

Both models have built in current sharing to support 1+1 or N+1 redundant system configuration, providing a simple path to upgrading OEM designs from a single to redundant power solution.

The units have a wide operating temperature range of -25C to +70C and a typical efficiency rating up to 91%. The resultant reduction in internal heat generation simplifies thermal management for the system builder.

The DIN-120 and DIN-240 power supplies are capable of providing a 150% peak load capacity ensuring systems are capable of handling load power surges safely.

Other key features include:

• Built-in active PFC with power factor >0.95
• Excellent Partial Load Efficiency
• Suitable for critical applications
• 3 years warranty

Other products available from Stadium Power include; LED power supplies and DALI drivers, commercial and MIL-STD EMC filters, plug-top and open frame medical power supplies for portable and system use, DC-DC converters, AC-DC power supplies from 5-1500W, battery chargers and EN54 Fire and Security power supplies offering the industry standard 13.8Vdc and 27.6Vdc outputs.

Stadium Power has over 30 years of experience in the manufacture of custom, standard and medical switch mode power supplies, programmable power supplies and converters, LED drivers and EMC Filters to international standards including EN, IEC, CSA and UL.

The company can offer a complete design and build custom power supply service including in-house Design, Engineering, NPI, PCB assembly and box build services. Offshore manufacturing for high volume products can be provided the wholly owned facility in Asia.
