Metal structure provides support without cable sag

The range of material is intended for customisation to all types of environment. Cope Trof Cable Tray is ideal for use in the power, automotive, transportation, service entranceways, data, heavy industrial and commercial industries.

Manufactured and tested to NEMA standard VE-1, Cope Trof Cable Tray features corrugations that provide great lateral rigidity to the bottom of the tray, transmitting the load to the side rails.

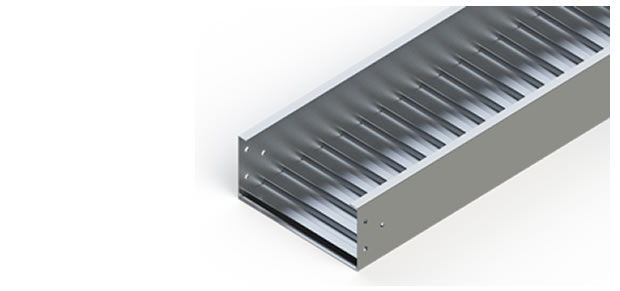

Offering continuous support of one inch ribs every two inches, with or without ventilation, the Cope Trof Cable Tray design virtually eliminates cable sag and uneven cable point loading.

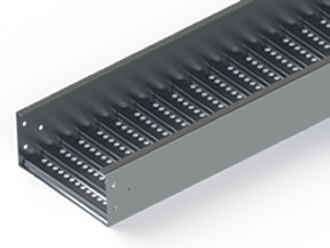

The bottom design offers safety and security from unauthorised access. The tray system’s ventilation allows for free passage of air through the openings, resulting in a 68% open area to facilitate proper heat dissipation.

A comprehensive range of fittings makes the system customisable to accommodate varying configurations. Users can achieve design flexibility with numerous sizes of horizontal and vertical elbows, adjustable elbows, cross pieces, tees, reducers and branches. Cope’s customer service experts can help customers select the right fittings for specific applications.

Cope Trof Cable Tray meets ASTM A1011 or ASTM A1008 standards for hot-dip galvanised steel products; ASTM A-653-G90 for pre-galvanised steel products; AA-6063-T6 and AA-6063-H34 for aluminium side rails and bedplates, respectively; and ASTM A-240 type 304 for stainless steel products.
