Safe areas when handling flammable material

13th September 2018
Source: Pyroban
Posted By : Alex Lynn
Safe areas when handling flammable material


Explosion protection company Pyroban has seen year on year growth for its Gascheka duo ‘added safety’ system. But why do so many companies choose this product when it may not be a legal requirement outside of zones one and two?

Rob Vesty, Sales Manager for Pyroban, stated: “When you handle potentially hazardous liquids or gases, a risk assessment will define the high-risk areas as either Zone one or Zone two in line with ATEX so that businesses can select the necessary explosion protected equipment. Anywhere outside of these classified areas is considered ‘safe’, often requiring no special equipment.”

However, Pyroban believes that when it comes to handling potentially hazardous materials onsite, there are no safe areas as boundaries are not fixed and gases can easily cross from a Zone two into an area considered safe.

Standard lift trucks have multiple ignition sources, such as heat or sparks, so regardless of where they operate on a site where hazardous areas exist they need to have some form of protection. This also applies to cranes, access platforms and other plant or materials handling equipment which are expected to operate in these ‘safe’ areas.

Vesty added: “Without strict supervision, it is easy for vehicles to cross from a ‘safe’ area into a Zone two area without realising it. For example, a forklift moving pallets from a storage area into a loading bay ready for dispatch.”

To help reduce this risk and support operations with protection for ‘safe’ areas where full explosion protection is not required, Pyroban developed the Gascheka duo added safety system. This gas detection system monitors the surrounding area of any type of vehicle, from forklift trucks and pallet stackers, to vans and transportation vehicles and can be fitted to diesel, electric or LPG vehicles.

If gas or vapour is detected at ten percent LEL (propane in air) the driver gets visual/audible warnings and should drive away from the area, warning any colleagues of the imminent danger. If gas or vapour levels rise to 25% LEL the truck will automatically be brought to a controlled stop preventing an explosion, and protecting the driver, site and supply chain.

Vesty explained: “We have seen a growing number of large fleets specify Gascheka duo, particularly from those handling bottled gas and third party logistics companies who are responsible for transporting flammable material for major FMCG brands. Risk assessments may have ruled out full explosion protection, but the 3PL, and insurance company, typically recognises the risk of explosion and wants to do something to protect the large workforce at risk in distribution centres.”

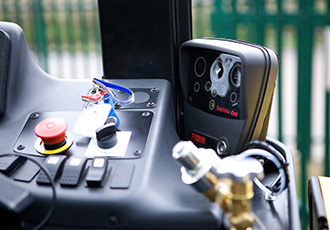

A Gascheka duo control module provides an interface between the operator and the equipment and is fitted within easy reach of the driver. It is used to start the system and informs the operator when any gas is detected. Pyroban offers the choice of two gas sensing head technologies, Pellistor or Infrared, to suit the application.

For even greater added safety, any equipment fitted with Pyroban Gascheka duo requires a gas test before it will allow the vehicle to start up, checking that the gas sensing heads are calibrated correctly. It is easy to fit onsite and is comparatively low cost compared to full explosion protection.
