Hygienic cable entry plate prevents contamination

Posted By : Mick Elliott
Hygienic cable entry plate prevents contamination

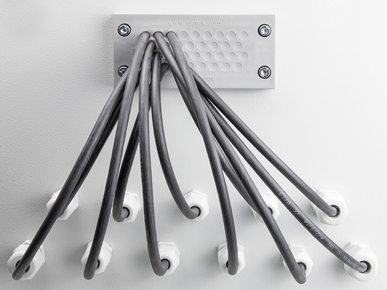

Availability of the icotec cable entry plate KEL-DPZ 16 has been announced by Foremost Electronics. The KEL-DPZ 16 fits outbreaks that are standardised for 16-pin heavy-duty connectors. The hygienic design does not create any niches which may collect contamination.

The new size 16 enables simple and fast cable entry. Up to 34 cables, with diameters from 1.5-16.2 mm and can be inserted and double-sealed in a confined space.

Cables without plugs can be quickly and safely inserted into control cabinets and housings, has dual sealing according to IP65/IP66/UL type 12 and protection up to IP66 (certified according to DIN EN 60529: 2000-09). Certifications including as ECOLAB, EN 45545-2 HL3, EN45545-3 E45 / EI30, DNV-GL and others are standard.

Assembly of the KEL-DPZ 16 with cables or pneumatic hoses is simple and fast.

Making a small hole in the thin membrane allows cables to be pushed through and the footprint of the KEL-DPZ 16 matches exactly the cut-out dimensions of 16-pin standard industrial connectors.

Cables passing through the KEL-DPZ 16 are automatically sealed and strain relieved and any holes made in the membrane that are no longer required can be filled with icotek ST-B plugs to maintain the IP integrity of the entry plate.

Alan Vincent, Sales Director of Foremost, comments, “The new icotek KEL-DPZ 16 cable entry plates are a cost and time saving alternative to traditional cable glands is ideal for electronic and electromechanical systems and control panels installed in food preparation or storage locations and provides a flexible and reusable cable access point.”

Icotek have been developing innovative cable entry and EMC cable shielding systems for over 15 years, hold a number of patents and are designed-in to global OEMs and leading companies in a wide number of industries.
