Left hand threaded shaft collars

29th August 2018
Posted By : Alex Lynn
Left hand threaded shaft collars

Ruland has expanded its offering of threaded shaft collars by adding inch and metric left hand threaded styles to give designers more flexibility to work with standard off the shelf components. They are available in one and two piece clamp styles in steel and stainless steel with bore sizes ranging from 0.2 to 2.25” and four to 30mm.

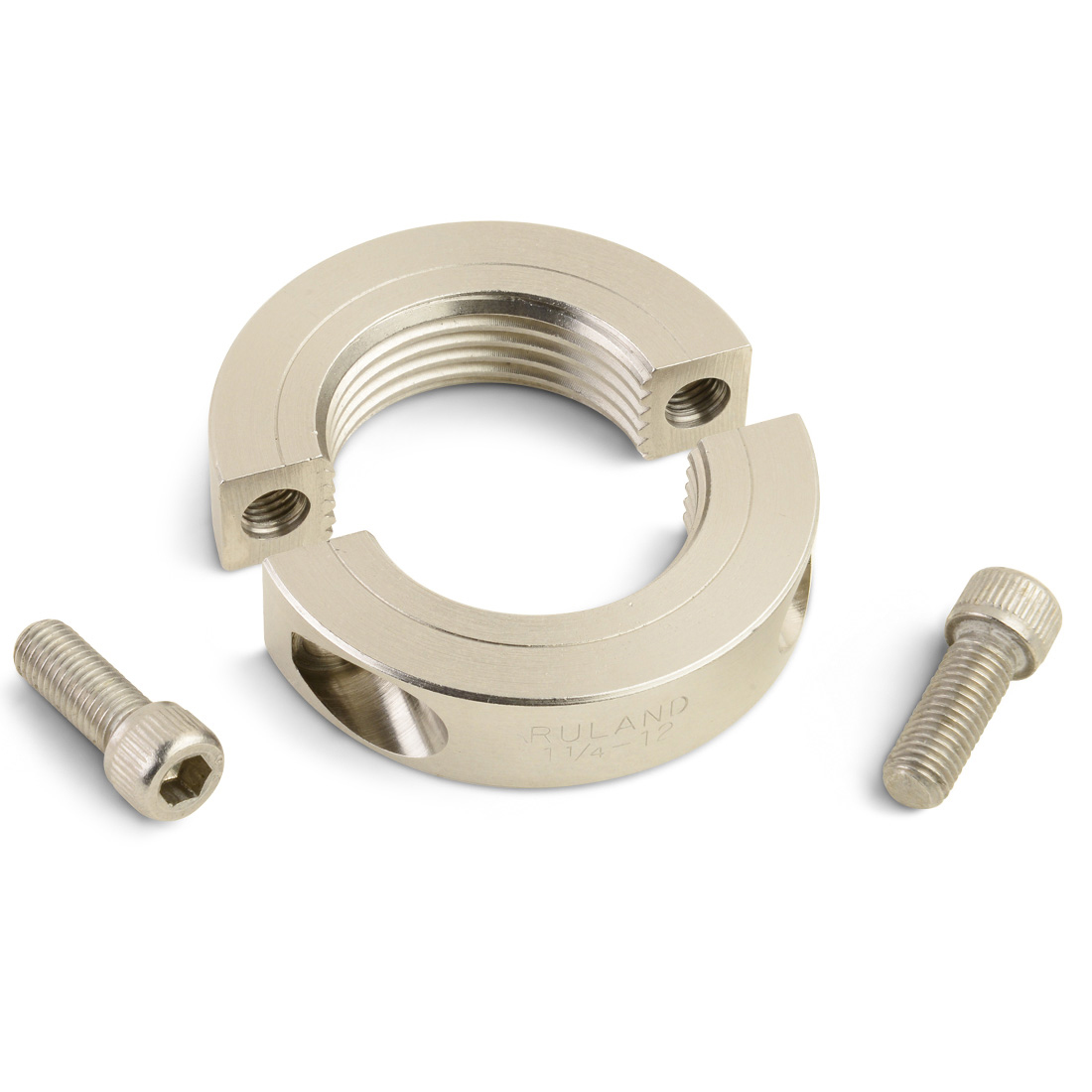

Left hand threaded shafting is commonly used to reduce the risk of components coming loose in rotating applications and as a safety measure to prevent the unintended removal of critical components. Ruland manufactures left hand threaded shaft collars in one and two piece styles to meet the needs of equipment manufactures. Threaded shaft collars are designed to provide higher axial holding power than round bore collars of comparable size. They are well suited for guiding, spacing, stopping, mounting, and component alignment in industries such as packaging, printing, semiconductor and solar. Two-piece type allows for simple installation or disassembly without the need to remove adjacent components.

Ruland double taps threads to ensure a precise and burr-free finish allowing for easy installation and removal, proper fit, and extended shaft life. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity of Ruland shaft collars (TIR ≤ 0.002” or 0.05mm) which is critical when they are used as a load bearing face or for aligning components such as bearings or gears. Forged screws test beyond industry standards to ensure maximum holding power.

Left hand threaded collars are manufactured from 1215 lead-free steel with a proprietary black oxide finish and 303 stainless steel with hardware of like material. Ruland shaft collars are machined from bar stock sourced exclusively from North American mills and carefully manufactured in Ruland’s factory in Marlborough, Massachusetts, to ensure product consistency.

All Ruland products are RoHS3 and REACH compliant.
