HPHT electrical connector developed using polymer to reduce downtime

Both companies worked closely together during the material selection and the development of the moulding process, which enabled Rampart to introduce its first connector using VICTREX PAEK polymer.

As oil reserves continue to be depleted, the industry is being forced to find oil in unconventional places that can expose equipment and components to higher temperatures and pressures as well as aggressive corrosive elements.

“Customers using epoxy connectors face a couple of potential issues,” explained Ed Beshoory, President of Rampart Products. “Consequently, we were looking into high performing materials capable of meeting multiple requirements. As a result, we are now using for the first time a Victrex material, VICTREX HT polymer, due to its consistent properties and processing. The education and processing support Victrex provided in the development phase have convinced us to also look at other Victrex high performing polymers for future applications, enabling us to offer connectors with the performance properties we are looking for.”

The connector had to be rated for temperatures beyond 200°C (400°F) and pressures at 20,000psi (1,380bar) providing also a reliable electrical connection while protecting expensive sensors and electronics. Additional requirements included compatibility with industry-standard pin patterns, extended mating cycles and assembly efficiencies.

To prove the reliability of the multi-pin connector made with the Victrex material, Rampart gained data from using a new test vessel. It allows real-world operational settings to test the performance at both high temperature and high pressure simultaneously in a precise manner. Alternative evaluation strategies might typically be to test the connector at an appropriate temperature but at minimal pressure, or at high pressure and room temperature.

Going beyond standard testing protocols, such as NORSOK and ISO, is familiar to Victrex. In doing so the company is supporting the industry to better understand how VICTREX PAEK materials operate in harsh environments. “Victrex typically tests polymers for longer, that is for more hours, and in real-world condition simulations such as higher temperatures and more aggressive chemical environments than those prescribed by the test protocols,” said Dr Geoff Small, Energy Market Technology Manager at Victrex. “This provides a better prediction of how the polymer will perform in various conditions to contribute to the development of reliable applications.”

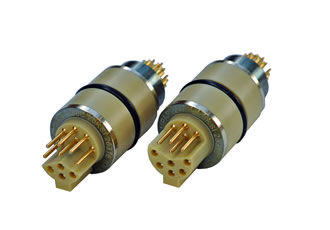

Traditionally, glass-reinforced epoxy (thermoset) was used in the KTK electrical connector market. However, using this material can result in cracking and chipping, requiring oil service companies to replace the connectors. Rampart Products reported that the VICTREX HT connector has more than twice the impact resistance of the glass-reinforced epoxy constructed connectors which provides greater reliability in use by reducing cracking and chipping.

Connectors made from Victrex´s polymer can provide more stability in the drilling process by enabling the reliable transmission of power and data to the tool, compared to incumbent solutions. In addition, the vibrations within the tool can cause dust to be generated from the epoxy connectors which may cause electrical shortages and costly downtime.

“In addition to finding the right material, an equally important key benefit for the industry is efficient manufacturing. The VICTREX HT polymer facilitated that through rapid injection molding. “Victrex provides expert assistance with molding their materials, thus reducing development cycle time and allowing us to further push the performance envelope,” concluded Ed Beshoory, President of Rampart Products. Beyond the upstream drilling market segment, Rampart believes their line of electrical connectors can be used in subsea environments and in military applications.
