Integrated Stepper Motors with Industrial Ethernet, Profinet

26th February 2016
Posted By : Jacqueline Regnier

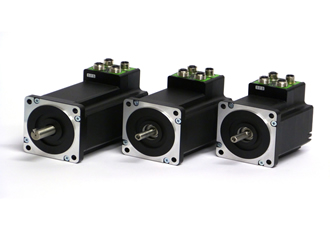

Integrated Stepper Motors with Industrial Ethernet, Profinet

JVL has added Profinet Industrial Ethernet capabilities to their NEMA 34 Series of integrated steppers with programmable controllers.  Available in 4 torque ratings of 3,0 Nm (26.6 in.lb), 6,0 Nm (53.1 in. lb.), 9,0 Nm (79.7 in. lb.), and 12,0 Nm (106.2 in. lb.) these very compact integrated steppers (the MIS340 is just 95 mm (3.74 in. long), include all necessary electronics within the IP67 rated motor housing.  the quiet, precision, powerful MIS340 Series steppers are ideal for: Industrial, medical, inspection, testing, and processing applications.

The expanded ethernet protocols of the MIS340 series of integrated steppers from JVL easily connect to Ethernet bus systems such as: EtherCAT, Ethernet I/P, Powelink, ModbusTCP, Sercos III and Profinet. Additionally they are available with bluetooth, ZigBee, WLAN, PLC, RS485, and CANbus. These high performance steppers are also available with separate SMC85 controller. Options include: Electronic gearing, 9.53 mm (0.375 in.) or 14 mm (0.551 in.) diameter shafts, absolute multi-turn encoder, and planetary gear heads.

These high performance steppers feature a very high 409,600 steps per revolution 4,096 microsteps per step) for extremely smooth and quiet operation. The integrated PLC features 8 I/Os, RS-422 and RS485 connections for encoders, and point-to-point or multi axes operations to 254 axes. The 12-80 VDC supply provides high torque (0-9 A RMS (12.6 A peak) at high speed, and the control 12 to 28 VDC can maintain position value, etc. in emergency situations.
