High torque mini motor comes in a compact package

16th October 2017
Source: Portescap
Posted By : Anna Flockett
High torque mini motor comes in a compact package

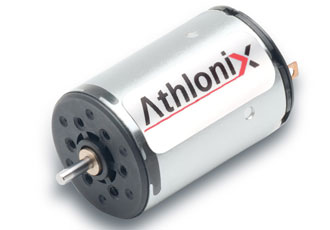

The new 16DCT motor has been introduced by Portescap to its high torque DCT range of Athlonix motors. The 16DCT motor can deliver continuous torque up to 5.24mNm at a length of only 26mm. The 16DCT utilises powerful Neodymium magnets and Portescap's proven energy efficient coreless design.

The optimised self-supporting coil ensures high performance is delivered in a compact package, reducing the overall cost of ownership.  Compared to similar motors in the market, the 16DCT has the lowest motor regulation (R/K2) which means it has a lower drop in speed at increasing load.

This provides the most powerful motor available at your disposal for various challenging application needs. This feature, combined with efficiency up to 85%, makes the 16DCT motor a suitable motion solution for battery operated tools.

16DCT is available with precious metal and graphite commutation systems and is suitable for applications such as medical and industrial pumps, drug delivery systems, robotic systems (bionic fingers), small industrial power tools, tattoo machines, mesotherapy guns, dental tools, watch winders, and industrial grippers. Other applications including security and access and humanoid robots can excel using the 16DCT Athlonix motor.

An optional special bearing assembly can also be provided for applications having cyclic radial and axial load requirements. The 16DCT is also available with an REE coil (Restriction of Electro Erosion) which prolongs the life of the motor and provides an environment of intrinsic safety especially at high speed conditions.

Component standardisation and design modularity allow quick customisation capability for samples across various applications. Athlonix motors are compatible with encoders and gearheads of various sizes and ratios and are also available on our online motor configurator Motion Compass. They are manufactured in an ISO certified facility and are RoHS compliant.
