Voice coil motor features higher continuous force

3rd May 2018
Source: MotiCONT
Posted By : Anna Flockett
Voice coil motor features higher continuous force

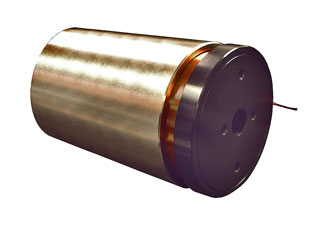

A new higher continuous force, higher peak force linear voice coil motor has been added to Moticont’s series of 2.750x3.50” (69.9x88.9mm) (housing) voice coil motors. The LVCM-070-089-03 linear voice coil motor features 40.86lbs. (181.5N) continuous force and 129.1lbs. (573.4N) peak force. This clean, quiet, efficient, low inertia, high acceleration, brushless high speed linear motor has zero cogging and features high accuracy, and a high repeatability to less than1µ (0.00004”) when operated in a closed loop as a DC servo motor.

This compact, more powerful motor is suitable for: work holding and clamping, antenna positioning, medical devices, assembly, testing, laser machining and drilling, wafer handling, optical focusing, dynamic vibration absorption, scanners and laser beam steering and filtering.

The LVCM-070-089-03 linear voice coil motor linear motor has a stroke length of 1.00” (25.4mm) and is easily added to new or existing applications using 10-32 UNC-2B mounting holes on each end of the motor which can be order as a complete plug-and-play system including an encoder and controller.
