Air motors are efficient and versatile in hazardous areas

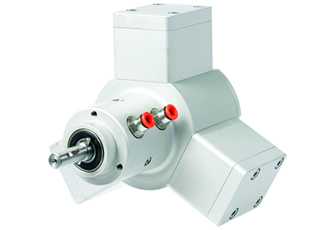

The immediate benefit of selecting an air motor is that it offers spark-free operation without resorting to an expensive shielded ATEX-rated electric motor. In hazardous environments it’s important to reduce the risk of sparks wherever possible, so specifying a motor that operates entirely on compressed air is the recommended and most cost effective solution. As a result, the Dynatork 3 air motor is compliant for use in ATEX Zone 1 applications.

The Dynatork 3 air motor incorporates Huco’s free-floating piston technology, which minimises air leakage past the piston. This ensures that the vast majority of the energy present in the compressed air is converted into motion, resulting in air consumption up to 80% less than an equivalent vane air motor. This of course translates into substantial energy savings for end users, even during heavy operation.

Air is supplied at up to 100psi to each of the three pistons through an integral rotary valve, providing maximum torque from start-up. The motor can also be fitted with torque sensors to provide closed loop feedback for accurate position control without the need for expensive electronic controls.

The advantage of such construction is obvious during operations that require stop/start applications under load. If an AC or DC motor is held by a brake, the motor risks burnout within a very short timeframe. However, an air motor will simply stop and then seamlessly operate again when the brake is released. With no components that can be damaged, an air motor can be started, stopped and restarted with no debilitating effects upon the device itself. These properties mean that the motor can be utilised in indexing operations, offering precision and control of motion required for such applications.

Ease of maintenance and installation are also offered by Dynatork 3 air motors. The motor is lightweight, allowing it to be moved easily for installation and maintenance work. Disconnecting the device from the air supply is also straightforward, minimising maintenance costs and reducing down-time. Furthermore, due to its small footprint, the Dynatork 3 air motor saves space within the application area, especially when compared to an electric alternative that may require a bulky gearbox, enclosure or variable speed drive.

The motor can be specified in aluminium, stainless steel or acetal versions. Stainless steel or acetal housings are particularly suited to environments where regular wash-downs are required, with its high resistance to caustic acids and chlorinated sanitisers acetal is perfectly adapted for use in food and beverage processing.

Dynatork air motors can also be supplied using non-magnetic materials suitable for applications where magnetic fields and electro-magnetic interference are concerns. No electricity is required which makes the motor suitable for MRI scanners, operations underwater or in stealth applications, where the minimising of signals is of paramount importance to avoid detection. For more specialist applications Huco recommends consulting with its engineering team to adapt a suitably evolved system.

Flexible, reliable and cost effective – the Huco Dyntrok 3 air motor range offers a speed range between up to 800rpm and torques up to 15Nm without gear reduction.
