IoT gateway PC handles harsh environments

23rd August 2019
Posted By : Mick Elliott
IoT gateway PC handles harsh environments

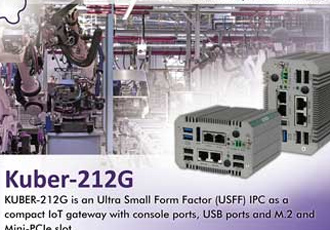

The Kuber-212G- a compact-sized, fan-less embedded system from Mitwell, a subsidiary of Portwell, features the latest 14nm Intel Celeron N3350 processor (codenamed Apollo Lake). It is compact 99 (L) x 63 (W) x 92 (D) mm design, and features low power consumption, high-performance computing and a powerful graphics engine.

It is offered as an IoT gateway for harsh industrial automation applications, factory automation and demanding applications.

The Kuber-212G is packaged in a rugged, fan-less case and benefits from about 30% more computing power and 45% more graphics performance compared to the previous generation.

It offers powerful Intel Gen9 graphics, with up to 18 execution units, allowing the connection of 4k displays via display port. In addition, the fan-less Kuber-212G operates with a Thermal Design Power (TDP) below 10W.

For local data acquisition and communication, the Kuber-212G offers a broad set of industrial interfaces such as 2xGb Industrial Ethernet (Intel i210), 2x USB 3.0, 4x USB 2.0 and 2x RS232 (via RJ45).

Windows 10 IoT Enterprise and Yocto Linux as operating systems and Microsoft Azure guarantee high flexibility for the use in various IoT-focused applications.

Compared to the general industry standard (EN 61000-6-1), the Kuber-212G is designed for heavy industry requirements of EN 61000-6-4 (EMI) and EN 61000-6-2 (EMS) and the EMS standards IEC 610004-4, 4-6, 4-8, which contain extended EFT, CS and PFMF criteria, which enables it to cope with applications in harsh environments
