Electromotive valves as alternative for food applications

8th September 2016
Posted By : Anna Flockett
Electromotive valves as alternative for food applications

Launching two new electromotive process valves, Bürkert Fluid Control Systems, designed Types 3360 & 3361 to represent the latest innovation offering a precision control solution without the need for compressed air. Designed as a complete unit, the new valves provide a robust, highly efficient solution suitable for applications in the food and beverage industry where reliability, precision and clean operation are also key factors.

For applications where a source of compressed air is either not available or not desirable, the implementation of electromotive valves can deliver a simple design and efficient operation, combined with the highest precision and smart diagnostics.

Designed as a complete unit, the new valves are specifically for operation in hygienic applications and are fully compatible with the ELEMENT valve actuator housings allowing existing pneumatic systems to be converted to electromotive.

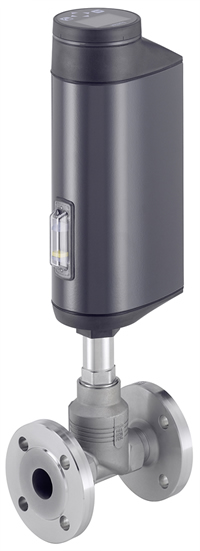

The new valves are available with either a globe valve (Type 3361) for the highest precision or an angle seat valve (Type 3360) for more general applications. In both cases the valve design is identical to the proven pneumatic valves that are known to provide reliable operation and excellent service life.

Externally, the control valve housing incorporates an illuminated LED ring which indicates the status of the valve and can be seen from any direction. In addition, there is a mechanical position indicator that shows the exact valve position independent of any electrical system and still works in the event of a power failure.

The actuator can be specified with an HMI display module that offers a rugged screen and buttons for configuring the valve settings. The valves can also be connected to automation networks, or for a more basic application, the HMI can be omitted and the fundamental functions of the valve can be operated via a series of four DIP switches and two buttons located under a cover on the top of the valve.

Communication with the new control valves is managed through the service connection which enables the COMMUNICATOR software to configure the device, apply fault diagnosis and update software. There are also several fieldbus options, such as Ethernet/IP, Modbus and Profinet, which are provided through the fieldbus gateway.

An optional feature ensures a safe valve position is achieved in the event of a power failure, enabling processes to be halted with a minimum of disruption. The SAFEPOS energy pack allows the valve to be operated automatically to a predetermined position, from open to closed or anywhere in between. The energy pack, which has a nominal lifetime of around ten years, is constantly monitored and its performance can be monitored through the network connection.

The latest electromotive valves from Bürkert offer some of the quickest acting, hygienic and precise control valves in the market, without the additional costs or complications with air lines associated with pneumatically operated valves.
