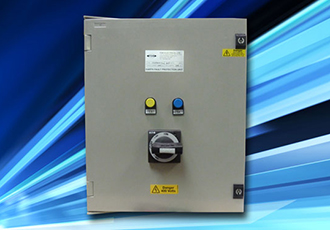

  It has been announced that the FDB Electrical series of FDB 19 heavy duty RCCB units is designed to overcome inherent earth leakage or inrush currents, combining a variable sensitivity and time delay RCD together with a triple pole MCCB (minimum 16 KA) to provide overcurrent and short circuit protection.

FDB Electrical have released the FDB11 which is a general purpose RCD panel unit providing overload and short circuit protection for industrial, academic, institutional and corporate applications. Additionaltly FDB Electrical want the best for their customers and have made installation quick and easy with the FDB11 housed in a sheet metal enclosure.

Now offering its technology in component form to panel builders wishing to configure their own systems, FDB Electrical specialise in industrial electrical protection equipment. The FDB range includes many panel mount devices and system elements. The FDB EMGUARD earth line monitor range includes their 110V, 240V and 440V units – the 110V unit in particular being of interest since this is a rating not commonly offered elsewhere.

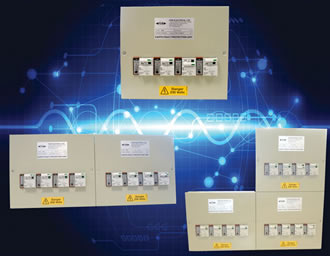

Multi-way housed earth fault protection system, the FDB2 RCBO unit, shares DC immune technology with its smaller sister unit the FDB11. FDB2 offers 2, 3 and 4 way options as standard with approval by Network Rail for use in DC electrified areas where it provides general purpose earth leakage protection, including overload and short circuit protection, for AC equipment without the problems of nuisance tripping associated with DC induced currents.

Where protection of AC equipment is required in areas adjacent to powerful DC currents – as in electrified rail environments – then the special technology of the FDB11 RCBO panel is typically called for as approved by Network Rail.

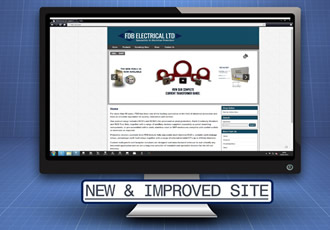

The new website from market leaders in earth leakage protection FDB Electrical covers their ranges of high performance electrical protection units from multi-way RCBOs to outdoor and custom distribution panels. The site presents full product information in one place, together with the FDB Knowledge Base program of guidance documents for free download.

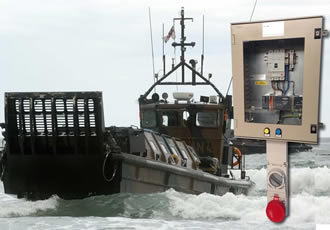

FDB Electrical Ltd has recently completed a new contract to supply their FDB19/STS special-purpose power supply units for use by Royal Marines landing craft such as the RM rapid-response/patrol boat. The current order comes after FDB first supplied equipment for this application as long ago as 2004. Typically RM landing craft were used to patrol the harbour approaches at Weymouth and Portland during the 2012 Olympic sailing events.

The engineers at FDB Electrical developed the PEF-5 Percentage Earth Fault Unit for high KA capacity installations where there is a need for a practical, cost-effective method of detecting potentially dangerous earth fault currents before damage is caused to contactors, cables or plant.

Market activists FDB Electrical once again offer a really serious electrical protection device – in this case the FDB 17 RCCB/ECM with 3-phase socket outlet. This unit is designed specifically for use with remote, transportable or mobile industrial equipment such as steam cleaners, floor polishers, power distribution trolleys, generators, pumps etc, where it provides an Earth Monitor and Trip function incorporating a triple pole MCCB for overcurrent and short circuit protection.

The EFR-4/EFR-5 Earth Leakage Protection Relay from FDB Electrical forms part of their extensive Optima range of low cost, high specification RCD’s and can be specified at a wide range of trip levels and response times for precise system protection. The EFR-4/EFR-5 is designed for medium to high current applications where space is a limitation. It is housed in a compact Din-rail mounting enclosure complete with integral 28 or 46mm C.T. sensory coil and fitted with test, reset buttons and LED status indication.

FDB Electrical have once again addressed one of the major issues in electrical safety – that of earth continuity – with their EMGUARD series. This is a low priced series of very compact earth continuity monitors having a wide range of earth continuity impedance settings, but so designed that it is possible to set beyond the parameters specified by BS4444. The ultra-low power circulating in the pilot earth/loop (0.06W) means that it can be readily incorporated into intrinsically safe systems.

The FDB11 and FDB13 electrical protection units from FDB Electrical comprise a complementary series of general purpose earth leakage protection equipment, complete with overload and short circuit protection & are approved by Network Rail for use in DC Electrified Line Areas.

The EFR-2 Earth Leakage Protection Relay from FDB is part of their Optima range of low cost, high specification RCDs. It is especially suited to protection of all types of electrical machinery for the benefit of maintenance personnel. It offers an extremely wide range of performance and can be specified across extensive trip levels and response times for precise system control which is especially valuable for large industrial and automated machines. Examples include large electric motors, car parking barriers, automated manufacturing assembly lines etc.

Make industrial installations simple and robust with the FDB 12 series of IP65 housed single phase earth leakage protection units.

Heavy duty electrical protection is a speciality of FDB Electrical who have recently announced their IP65 rated FDB 19 series for applications throughout industry from construction sites, mines and quarries, to the protection of stage lighting systems where thyristor spikes can trip conventional RCD’s.

FDB Electrical are pleased to announce their FDB27 range of Hangar Power Distribution Cubicles (PDC) which has proved to be the benchmark for individual circuit protection in RAF Bases around the world. Designed in accordance with MOD and PSA specifications, the FDB27 range provides electrical protection and control for power supplies to ground support equipment in hangars, workshops and garages.

FDB Electrical – specialists in earth monitoring equipment are increasing their support to defence contractors, design/specification engineers and electrical project engineers for their PCLM modular range by provision of a downloadable PDF datasheet available from www.fdb.uk.com. The PCLM has been designed especially for application in modular electrical systems as used by military or quasi-military organisations for temporary bases, field hospitals, mobile communications centres, forward command centres etc.

Mains power distribution across outlying areas of military and civil airfields poses its own specific problems of environmental, security and electrical protection for maintenance personnel - problems which fortunately the specialists at FDB Electrical are experienced at solving. The need for maintenance crews to get significant amounts of electrical power to outlying areas with safety requires both a high quality housing and a well designed electrical protection system. FDB have found that these requirements are ideally met by their stainless steel power cubicles, either in standard or custom configurations.

FDB Electrical are pleased to introduce the latest addition to their range of general purpose earth leakage protection units. The FDB2 is a compact 4-way RCBO unit that comes complete with overload and short circuit protection. It is considered ideal for all commercial and light industrial applications including offices, schools, railways, pharmaceutical plant and retail environments, e.g. supermarkets.
