Midwest Motion Products, Inc.

  A series of short and concise whitepapers have been recently published by Midwest Motion Products (MMP) which are available online. The first two to be released which are attached below, provide readers with some basic, yet critical guidelines on how to apply DC Motors and Gearmotors.

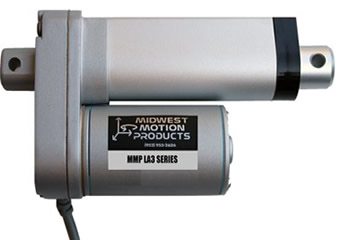

A new linear actuator has been released by Midwest Motion Products, a company based in Howard Lake, Minnesota. Unlike other light-duty actuators, which use a Delrin drive gear pinion, the Model MMP LA3-12V-5-A-SP-100 Linear Actuator, utilises and ‘All-Steel’ drive pinion, thereby increasing the force capacity, while maintaining the 5:1 Reduction Ratio which allows the unit to maintain a rapid 2” per second stroke speed.

Midwest Motion Products is pleased to announce the release of a new DC Gear- Motor, Model # MMP-D33-455A-12V GP81-03.7 - Accepting any 12 Volt DC source, including battery power, this robust Gear Motor measures just 3.2” (max) Diameter, by 8.4” long and has a keyed output shaft of 19mm diameter by 40mm long.

Midwest Motion Products is pleased to announce the release of a new DC Gear-Motor, Model #: MMP-D33-455D-48V GP81-03.7 - Accepting any 48 Volt DC source, including battery power, this robust Gear Motor measures just 3.2” (max) Diameter, by 8.4” long and has a keyed output shaft of 19mm diameter by 40mm long.

Midwest Motion Products, Inc. is pleased to announce the release of a new DC Motor, with integral Analog Tachometer, the Model No. MMP D22-376F-24V T-03-C. Accepting any 24 Volt DC source, this compact Motor measures just 2.24” in Diameter, by 5.4” long, including the 3.0V/Krpm analog tach. The output shaft is 0.3150” diameter by 1.18 Inches long. Easy mounting is accomplished with 4 through holes, measuring 0.19”, equally spaced on a 3.15” Dia. B.C. on an aluminum flange measuring 2.56” Square.

Midwest Motion Products is pleased to announce the release of a new DC Gear Motor, with integral failsafe brake, the Model No. MMP D22-376D-24V GRA60-032 BR-005. Accepting any 24 Volt DC source, including solar or battery power, this robust Gear Motor measures just 2.24” in Diameter, by 7.2” long, including the brake, and has a keyed output shaft of 14mm diameter by 25mm long. Easy mounting is accomplished with 4 “face mount” M5.5 threaded holes, equally spaced on a 52mm Dia. B.C.

The fully reversible Gearmotor is totally enclosed, creating an “IP-54” Sealed Assembly, suitable for use in many harsh environments.

Midwest Motion Products of Watertown, Minnesota, is pleased to announce the release of a new DC Gear Motor, WITH INTEGRAL FAILSAFE BRAKE, the Model No.MMP-D33-455D-24V GP81-124 BR-015. Accepting any 24 Volt DC source, including battery power, this robust Gear Motor measures just 3.2” (max) Diameter, by 12” long (Brake included) and has a keyed output shaft of 19mm diameter by 40mm long. Easy mounting is accomplished with 4 “face mount” M6 threaded holes, equally spaced on a 65mm Dia. B.C.

Midwest Motion Products of Watertown, Minnesota, announces the release of a new DC Servo Amplifier, the Model # MMP-1525-BR-24V. Accepting any regulated DC Input Power, ranging from 20 to 100 Volts DC, this compact, lightweight Servo Amplifier measures just 7.62” wide, by 5.2” tall and 1.0” Deep. Easy mounting is accomplished with slots conveniently located in 6 Positions for flat or vertical Mounting. The output of the Amplifier is rated for 15 Amps continuous and 25 Amps Peak, for 1 Sec, creating a 2.5 KW peak power capacity. The ±10V Analog command is scalable, for up to ±35V DC Command. The lightweight unit is delivered in a black brushed-aluminum case, and weighs in at just 1.5 Lbs. An accessory package consisting of a connector and pins is provided so the user can create a custom interconnect, making each unit uniquely suitable for the exact and specific application requirements.

“Powerful, Lightweight, Unit provides benefits for battery powered Electric Vehicles, Robotics & Automation Applications”

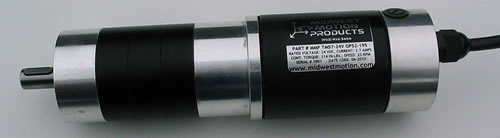

Midwest Motion Products of Watertown, Minnesota, is pleased to announce the release of a new DC Gear Motor, the Model No. MMP-TM57-24V GP52-195.. Accepting any 24 Volt DC source, including battery power, this robust Gear Motor measures just 2.24” in Diameter, by 7.75” long, and has a keyed output shaft of 12mm diameter by 25mm long. Easy mounting is accomplished with 4 “face mount” M5 threaded holes, equally spaced on a 40mm Dia. B.C. The output of this reversible gearmotor is rated for 214 Lb. In. continuous torque, at 23 RPM, and 443 Lb. In. Peak. Despite its compact size, and weight of approximately 4 pounds, it’s an efficient design, requiring just 3.6 Amps at 24 Volts DC to generate its Full Load Torque. That translates into long life battery charge, very low noise operation, and lower costs for related drive electronics. Motor windings for 12, 28, 36, 48, 60 & 90 Volts are available. This unique design is rated at an “IP 54” protection level for operation in harsh environments. V

Midwest Motion Products is pleased to announce the release of a new DC Gear Motor, with Integral Brake, the Model No. MMP-D22-376H-24V GP52-195 BR-005-IP54. Accepting any 24 Volt DC source, including battery power, this robust, „SEALED‟ DC Gear Motor / Brake measures just 2.25” (max) Diameter, by 9.0” long, and has a keyed output shaft of 12mm diameter by 25mm long. Easy mounting is accomplished with 4 “face mount” M5 threaded holes, equally spaced on a 40mm Dia. B.C. The output of this reversible gearmotor is rated for 214 IN LBS of continuous torque, at 10.3 RPM, and 443 IN LBS Peak. Despite its compact size, and weight of approximately 5 pounds, it‟s an efficient design, requiring just 1.75 Amps at 24 Volts DC to generate its Full Load Torque. That translates into long life battery charge, very LOW NOISE operation, and lower cost drive electronics. Motor windings for 12v, 28v 36v, 48v, 60v & 90 Volts are available. This unit features a TOTALLY ENCLOSED integral FAILSAFE

Midwest Motion Products announces the release of a new DC Gear Motor, the Model No. MMP-TM55-36-28V GP52-195. Accepting any 24-28 Volt DC source, including battery power, this robust Gear Motor measures just 2.14” in Diameter, by 7.75” long, and has a keyed output shaft of 12mm diameter by 25mm long. Easy mounting is accomplished with 4 “face mount” M5 threaded holes, equally spaced on a 40mm Dia. B.C. The output of this reversible gearmotor is rated for 196 Lb. In. continuous torque, at 12 RPM, and 443 Lb. In. Peak. Despite its compact size, and weight of approximately 4 pounds, it’s an efficient design, requiring just 2.1 Amps at 28Volts DC to generate its Full Load Torque. That translates into long life battery charge, very low noise operation, and lower costs for related drive electronics. Motor windings for 12, 36, 48, 60 & 90 Volts are available. This unique design is rated at an “IP 54” protection level for operation in harsh environments. Variable Speed can be accomplished with

Midwest Motion Products has announced the release of a new DC Gear Motor, the Model No. MMP-TM55-48V GPk52-046. Accepting any 48 Volt DC source, including battery power, this robust Gear Motor measures just 2.14” in Diameter, by 7.2” long, and has a keyed output shaft of 12mm diameter by 25mm long. Easy mounting is accomplished with 4 “face mount” M5 threaded holes, equally spaced on a 40mm Dia. B.C. The output of this reversible gearmotor is rated for 46 IN LBS continuous torque, at 100 RPM, and 89 IN LBS Peak. Despite its compact size, and weight of approximately 3.5 pounds, it’s an efficient design, requiring just 1.8 Amps at 48 Volts DC to generate its Full Load Torque. That translates into long life battery charge, very low noise operation, and lower costs for related drive electronics. Motor windings for 12, 24, 36, 60 & 90 Volts are available.

Midwest Motion Products is pleased to announce the release of a new DC Gear Motor, the Model No. MMP-PDSF80-12V GS-180-LS. Accepting any 12 Volt DC source, including battery power, this robust Gear Motor measures just 2.8” in Diameter, with a 3.15” Square Gearbox, by 6.2” long, and has a keyed output shaft of 10mm diameter by 27mm long. Easy mounting is accomplished with 4 M5 threaded screws, equally spaced 66.5mm apart.

Midwest Motion Products is pleased to announce the release of a new DC Gear Motor, the Model No. MMP-TM55-24V GP52-195.. Accepting any 24 Volt DC source, including battery power, this robust Gear Motor measures just 2.14” in Diameter, by 7.75” long, and has a keyed output shaft of 12mm diameter by 25mm long. Easy mounting is accomplished with 4 “face mount” M5 threaded holes, equally spaced on a 40mm Dia. B.C.
