Integrations for new packaging machinery demonstrated at PPMA

The ProSeal GT0 tray sealing machine was designed to increase line speeds, cut labour costs and produce over 45 packs per minute. The machine meets requirements for rapid tool changes, simple operation and ease of integration with other production line equipment. The high accuracy tool alignment system ensures consistently accurate sealing and film cutting, while a servo-driven ‘setting-free’ automatic tray collation in-feed delivers increased performance. A pendant mounted colour touch screen HMI provides control for full double-sided operation, with menu-driven control offering step-by-step prompts, error and status displays and a useful batch counter function, as well as providing recipe-driven auto machine set-up for tool change.

All of these benefits are delivered by Mitsubishi Electric automation equipment, including GOT series HMI for operator interaction, variable speed drives and servos for the demanding motion control requirements, control gear and an iQ-platform PLC for overall machine control. Adoption of a single, coherent automation platform ensures higher machine OEE (with faster throughput, faster product changeovers and less scrap), along with reduced total cost of ownership.

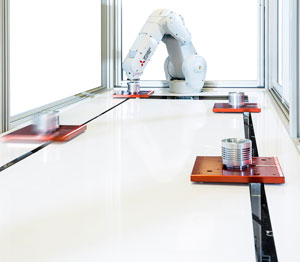

Further, highlighting how the integration of robotics onto the production line can dramatically increase line efficiency and productivity, the live ProSeal demonstration on the Mitsubishi Electric stand includes a MELFA articulated arm robot picking and placing trays to and from the GT0 tray sealer.

As well as enabling packaging sector machine builders to deliver operational benefits to their customers, the Mitsubishi Electric automation solution also offers significant advantages for the machine builders themselves. Adoption of a single automation platform ensures ease of integration for the various components, while the iQ Works engineering environment removes a significant burden from the machine builder or integrator. iQ Works offers full integration of PLC, variable speed drive, motion and robot programming environments including function blocks, a common tag database and simulation and monitoring across all these control disciplines.

All of this means machine builders can reduce development time, drive up reusability, reduce debugging time and simplify training.

Having simplified design, Mitsubishi Electric is also demonstrating simplified line integration, particularly in a multi-vendor environment, by implementing the OMAC PackML standard. The result for end users is faster upgrades and machine implementation in addition to the ability to collect OEE data in a uniform way from multiple machines and lines, highlighting key performance indicators such as performance, quality and availability data across the whole facility.

Visitors to the Mitsubishi Electric stand at PPMA also have their first opportunity in the UK to see the latest developments in Mitsubishi Electric’s Smart Carriage technology, which has been developed in conjunction with the linear transfer system designed by e‑F@ctory Alliance partner APT Automation. The Smart Carriage addresses industry challenges such as improved productivity, increased OEE and greater production line flexibility, with features and functions that make it the world’s most advanced packaging and assembly conveyor – including on-board intelligence, real-time synchronisation with other processes, assured safety and the ability to switch between vertical as well as horizontal tracks.

By offering on-board intelligence and data memory, as well as integrated power for on-carriage devices such as sensors, the Smart Carriage can store product information and production data. It can then communicate information from one station to the next. This also allows the carriage to detect different products and then decide on optimum routes and destinations. This is supported by a high maximum speed of 4m/sec, plus acceleration / deceleration of 3g and a positioning accuracy of ±0.01mm. With this solution packaging conveyors for high value items are entering a new era of material flow. All of this considerably increases the efficiency and flexibility of the packaging process.

In the most recent development, the Smart Carriages on the linear transfer system now support 3D Multi-layer motion, with carriages able to switch between both horizontal and vertical tracks on production lines. This means that different product related processes can be matched to the product, and at a later date merged again intelligently on the rails. The result is significantly higher plant utilisation, greatly increased flexibility and decreased redundancy.

All of these capabilities are being highlighted in a working demonstration on the Mitsubishi Electric stand. Not only that but the company will have a full team of packaging industry experts on hand to discuss the wider issues of automation within the packaging sector.

Mitsubishi Electric will be on stand C60 at the PPMA Show, at the NEC, Birmingham, from 26-28^th September 2017.
