Copper-clad aluminium can reduce the weight of a transformer

Ever-tightening efficiency regulations around the world have seen the size of transformers gradually creep up in recent years. Without radical changes to design, manufacturing process, or materials, a simple increase in transformer size can significantly reduce resistance and, therefore, losses. However, as the size of a transformer increases, typically so too does its weight. In many applications this is not an issue but for pole-top distribution transformers, traction transformers or transformers for aerospace applications, weight is vital.

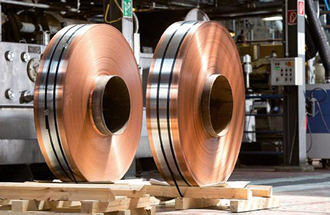

Enter German metals specialist Wickeder Westfalenstahl, whose winding wires made from copper-clad aluminium offer lightweight coils thanks to the aluminium core and strong connectivity thanks to the copper cladding. In effect, the combination brings out the main advantages of both materials for an exceptionally high-performance yet lightweight transformer.

“We have been supplying copper-aluminium combinations for busbars and connectors in switchboards, distribution boards, substations and battery banks to all the major players in Europe and North America for more than 30 years. However, the benefits of copper-clad aluminium for certain types of transformers are generally not very well known. This is something we’d like to change through our participation at CWIEME Berlin,” says Kevin Jürgens from Wickeder Westfalenstahl’s product technology department.

Jürgens will be holding a seminar at CWIEME Berlin – the world’s leading exhibition for transformer manufacturing – on Thursday 12th May at 10:10. During his session, entitled ‘Transforming ideas: clad metal solutions’, he will present how the cladding process works and which cladding designs Wickeder Westfalenstahl can produce, as well as specific cladding solutions for different transformer applications.

In addition to learning about the benefits of this material technology in a seminar, visitors can also feel for themselves how light copper-clad aluminium is and take away samples from stand 1.1/D15. Wickeder Westfalenstahl will be joined on this stand, sponsored by the German Electrical and Electronic Manufacturers Association ZWEI, by several other German suppliers to the transformer manufacturing industry, encompassing steel cores and insulation materials.

“This cooperation is essential in changing perceptions of Wickeder Westfalenstahl from just a metals supplier to a transformer developing company,” Jürgens says.

Beyond transformer manufacturing, other important new weight-sensitive applications for Wickeder Westfalenstahl’s cold-rolled copper-clad aluminium include wind power generators and motors for hybrid and electric vehicles. In each case it is an opportune time for manufacturers to consider use of clad materials as Europe and North America’s ageing distribution transformers approach the end of their lives and require replacement, while the wind power generation and hybrid and electric vehicles industries are only just starting to take off.

“It happens occasionally that potential customers say to us, if we had known you also cater to our industry just a few months ago, we would have had some perfect business for you. We cannot let excellent opportunities like this for us and our customers pass by again, which why we wanted to take part in CWIEME Berlin for the first time this year. The exhibition was recommended to us by ZVEI and several of our existing customers because we have nearly all people there who are potential customers. At CWIEME Berlin there is also an important mix of technicians, with whom we can discuss our products, as well as the decision markers. If we went to a simple metals fair, for example, we would probably only meet the purchasing people. At CWIEME Berlin we are very much looking forward to speaking to both technicians and decision-makers about their challenges and our solutions and how we can become an even better supplier to CWIEME industries in the future,” he concludes.
